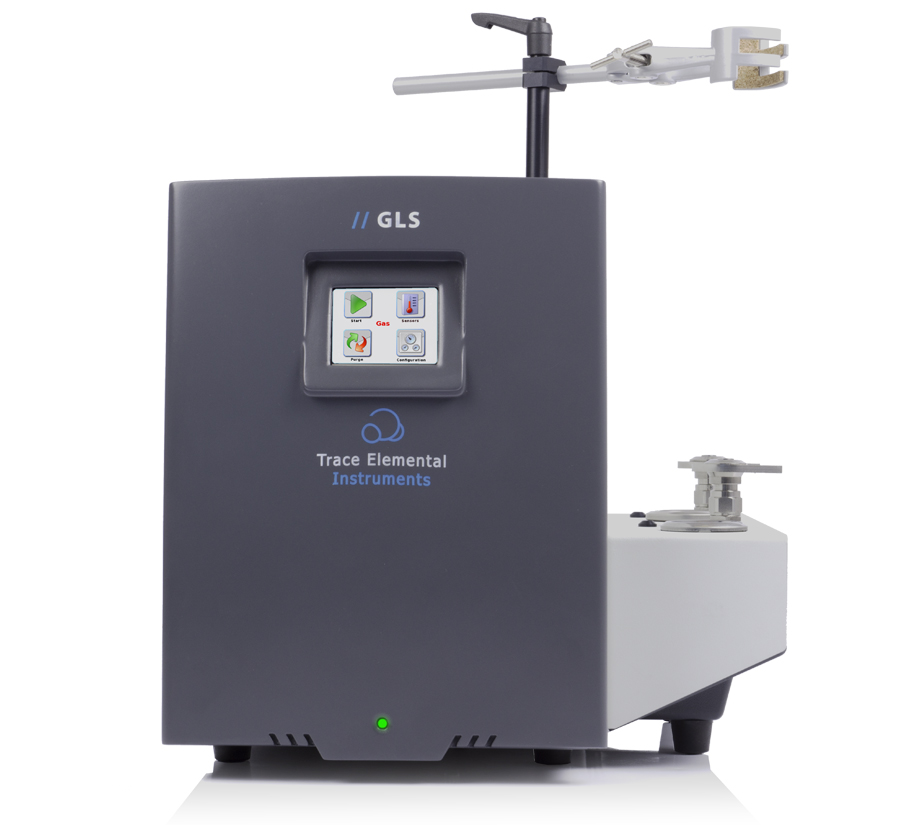

The next generation Gas & LPG sampling system Analyzing gas and liquefied gas is often seen as problematic.

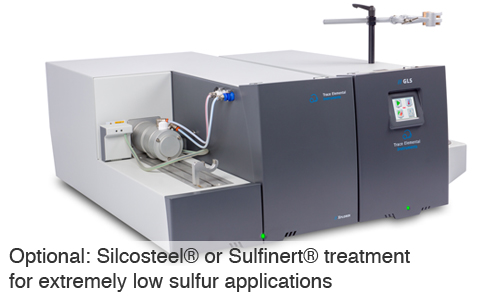

The chosen sampling technique and the ability to handle different kinds of gases at different pressures and physical appearances is challenging to say the least. TE Instruments has developed the GLS, suitable of handling all sorts of gases and LPG’s for the analysis of Total Chlorine, Nitrogen and Sulfur. It is perfectly suited to use together with the TE Instruments XPLORER combustion system, but also does an excellent job as a stand alone
gas sampler with other combustion analyzers.

Taking simplicity to the next level

One loop with a volume of 10 mL for gas and one with 100 μL for liquefied gas, are the standard built-in sampling loops.

Simply position the pressurized sample cylinder at the appropriate introduction port and start the XPLORER combustion analyzer.

Communication between the XPLORER and the GLS runs via a USB port. The chosen analysis method is being executed and the pre-set number of sample loops is run and analyzed.

Parameters like evaporation speed, temperature, flow and pressure are automatically controlled and monitored at all
times. Within a few minutes the final result is calculated and stored for reviewing.

Safe, reliable and robust

In most cases gas is highly flammable and might pose a risk in the laboratory. To ensure the safest possible way of handling, the GLS is equipped with a sensor which constantly measures the composition of the air inside the sampler. When hydrocarbons are detected, the sampler assumes there is a possible dangerous situation and aborts all activity. The display on the GLS and the XPLORER monitor indicate that a situation has occurred and various safety measures are taken.

The introduction of sampling gas into the XPLORER system and the carrier gas flow are stopped. At the same time the cabinet of the sampling
system is purged with the inert carrier gas. After inspection and correction, the reset button on the touch screen can be pressed in order to resume activity. The standard GLS safety mechanism prevents unintended removal of the sample bottle.

GLS safety mechanism

Stand alone

When the GLS is used as a stand alone sampling system, all parameters are set with the incorporated touch screen. Evaporation temperature, number of sampling loops, purge, gas or liquefied gas mode, are all adjustable and can be stored in method files. There is only one parameter controlled manually: the inlet pressure for gas samples.

The operator has a choice to set the gas pressure for the gas loop at the desired
pressure. For liquefied gas, pressure issues are dealt with automatically. This will ensure a fully controlled gas introduction towards the combustion analyzer and problem free oxidation.

	GLS System Specifications
	Dimensions (W x H x D)	30 x 29 x 57cm (11.8 x 11.4 x 22.4 inch)
	Weight	18kg (39lbs)
	Gas connectors	1/8" and 1/16" Swagelok
	Gases	Argon or Helium (carrier gas)
	Primary pressure gas sample	up to 50 bar
	Secondary samping pressure	2 - 5 bar (29 - 72 psi); adjustable
	Primary pressure liquefied gas	up to 25 bar
	Secondary sampling pressure	automatically controlled
	Evaporation Temperature	range ambient up to 75 °C
	Sample loops	10 mL gas; 100 μL liquefied gas
